- Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix
19% Rs. 52,925.00
Pronix

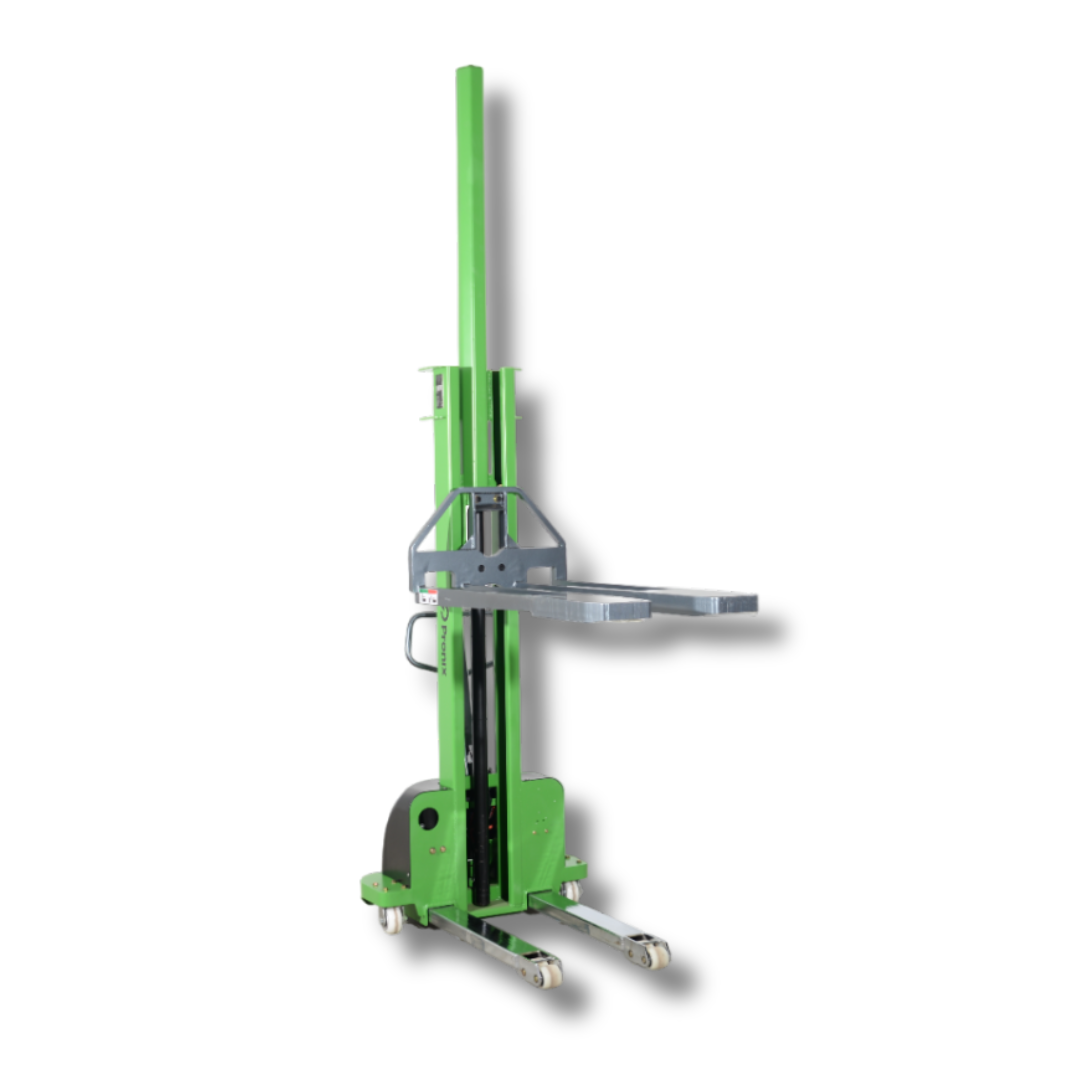

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix
SKU : 1000016182
- Brand - Pronix
- Type - Semi-Electric Self-Loading Stacker
- Model - PNXSESLS-0513
- Capacity - 500 Kg
- Load Center Distance - 500mm
- Fork Outer Spacing - 685mm
- Fork Length - 1195mm
- Operation Type - Walking Type
- Drive Wheel Size - Ø 250 x 74mm
- Load Wheel Size - Ø 80 x 60 mm
- Middle Wheel - Ø 65 x 30 mm
- Fork Lift Height - 1300mm
- Fork Starting Height from the Ground - 81mm
- Wheel Base - 974mm
- Vehicle Length - 1650mm
- Body Thickness - 409mm
- Body Width - 658mm
- Front Track - 518mm
- Single Fork Width - 253mm
- Minimum Turning Radius - 1173mm
- Maximum Driving Speed (Turtle Speed) - 0.5 km/h
- Maximum Driving Speed (Full Load) - 3.0 km/h
- Motor - DC 0.6 kW
- Lift Motor - DC 2.2 kW
- Battery - Lithium Battery (48 V)
- Battery Capacity - 15 Ah
- Battery Weight - 5 Kg
- Overall Weight (Include Battery) - 382 Kg
*Color may vary.
Dispatched by |
Available:
In Stock
In Stock
In Stock
Out of Stock
Back in stock
Rs. 230,100.00
- Description
- Reviews
- Pronix Semi-Electric Self Loading Stacker 500Kg (PNXSESLS-0513) is designed to provide safe, efficient, and ergonomic operation.
- Robust construction and lithium-ion battery offer 500Kg capacity and a lifting height of 1.3m with a maximum driving speed of 3 km/h.
- It has a capacity of 500 Kilograms and a lift motor of DC 2.2 kW powered by a 48 V Lithium battery with a 15 Ah capacity.
- Its turning radius is 1173mm and maximum driving speed is 3 km/h. It has an overall weight of 382 Kg, including the battery.
- Fork outer spacing of 685mm and a wheelbase of 974mm ensure maneuverability while a minimum turning radius of 1173mm allows the user to navigate narrow areas.
