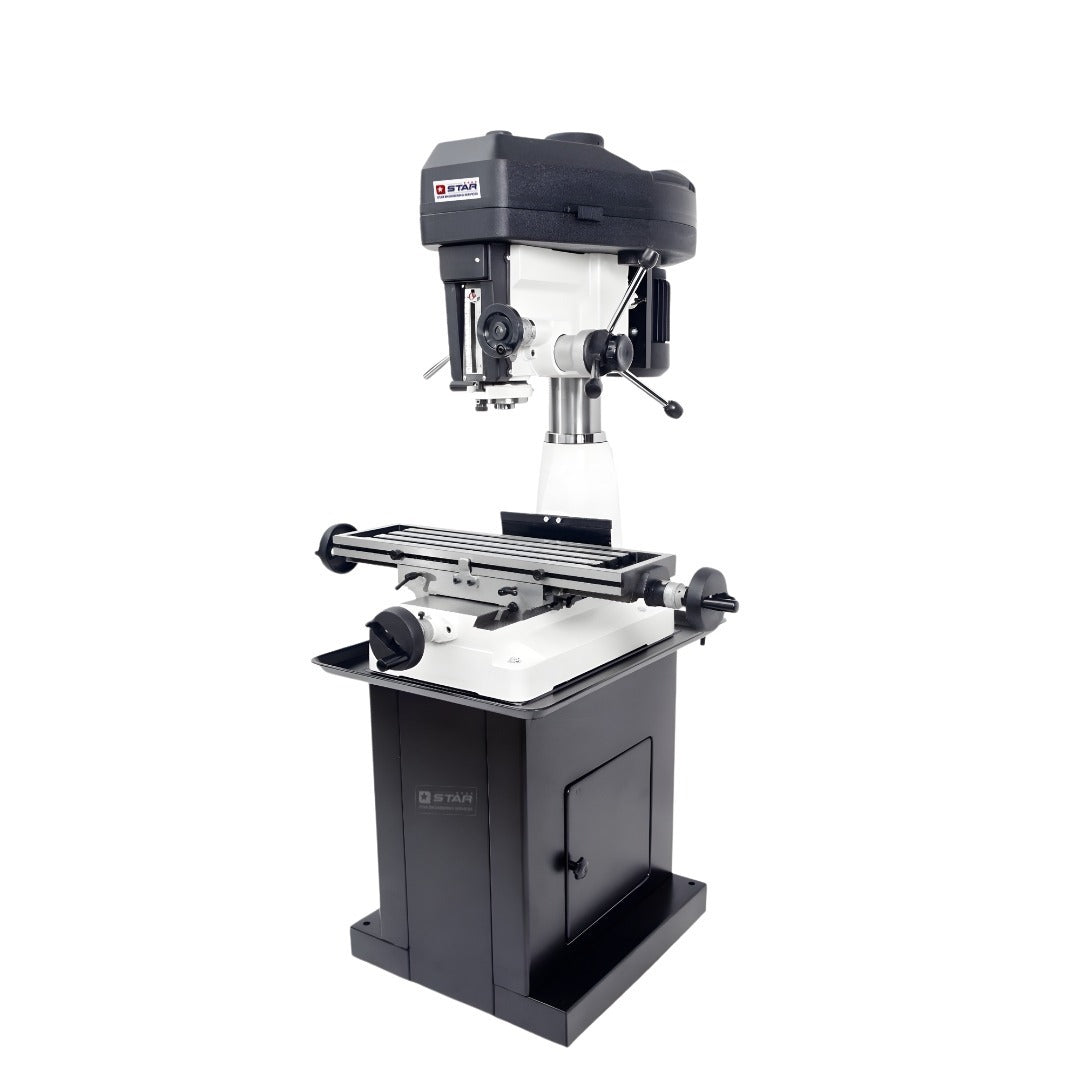

Brand - Star
Type - Small Machine
Model - SRMD-30B
Max.Drilling Capacity - 31.5mm
Max.Face Mill Capacity - 80mm
Diameter of Vertical Milling - 22mm
Diameter of Column - 115mm
Spindle Travel - 130mm
Distance Spindle Axis to Column Generating line - 202mm
Max. Distance Spindle Nose to Table - 460mm
Max. Distance Spindle Nose to Base Spindle Taper - MT3 / R8mm
Spindle Speed Range - 100–2150r/min
Spindle Speed Series – 12
Spindle Feeds – -
Dimension of Work Table Surface - 730 × 210mm
Table Travel - 450 × 170mm
Dimension of Base - -
Overall Height - 1100mm
Main Motor - 1100–1500W
Coolant Motor – -
G.W./N.W. - 285 / 250kg
Packing Dimension - 86 × 74 × 124 / 97 × 77 × 124cm
