Semi Electric Stackers

• Brand - Pronix
• Type - Semi-Electric Stacker
• Model No. - PNXSES-1516
• Capacity - 1500 Kg
• Max. Lifting Height - 1600 mm
• Load Center - 500 mm
• Min. Height - 85 mm
• Length of the Fork - 1000 mm
• Width of the Fork - 680 mm
• Ground Clearance - 25 mm
• Max. Lift Speed - 90±10% mm
• Max. Lifting Speed - 60 mm
• Max. Lowering Speed - ≤280
• Min. Turning Radius - 1500 mm
• Overall Length - 1700 mm
• Overall Width - 800 mm
• Overall Height - 2080 mm
• Rollers - Tandem, PU
• Roller Size - 80 x 70 mm
• Front Wheel Size - 180 x 50 mm
• Battery Capacity - 12v~100 Ah
• Charger - AC 220 DV/50Hz
• Self Weight of Battery - 35 Kg
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating

*Color may vary.

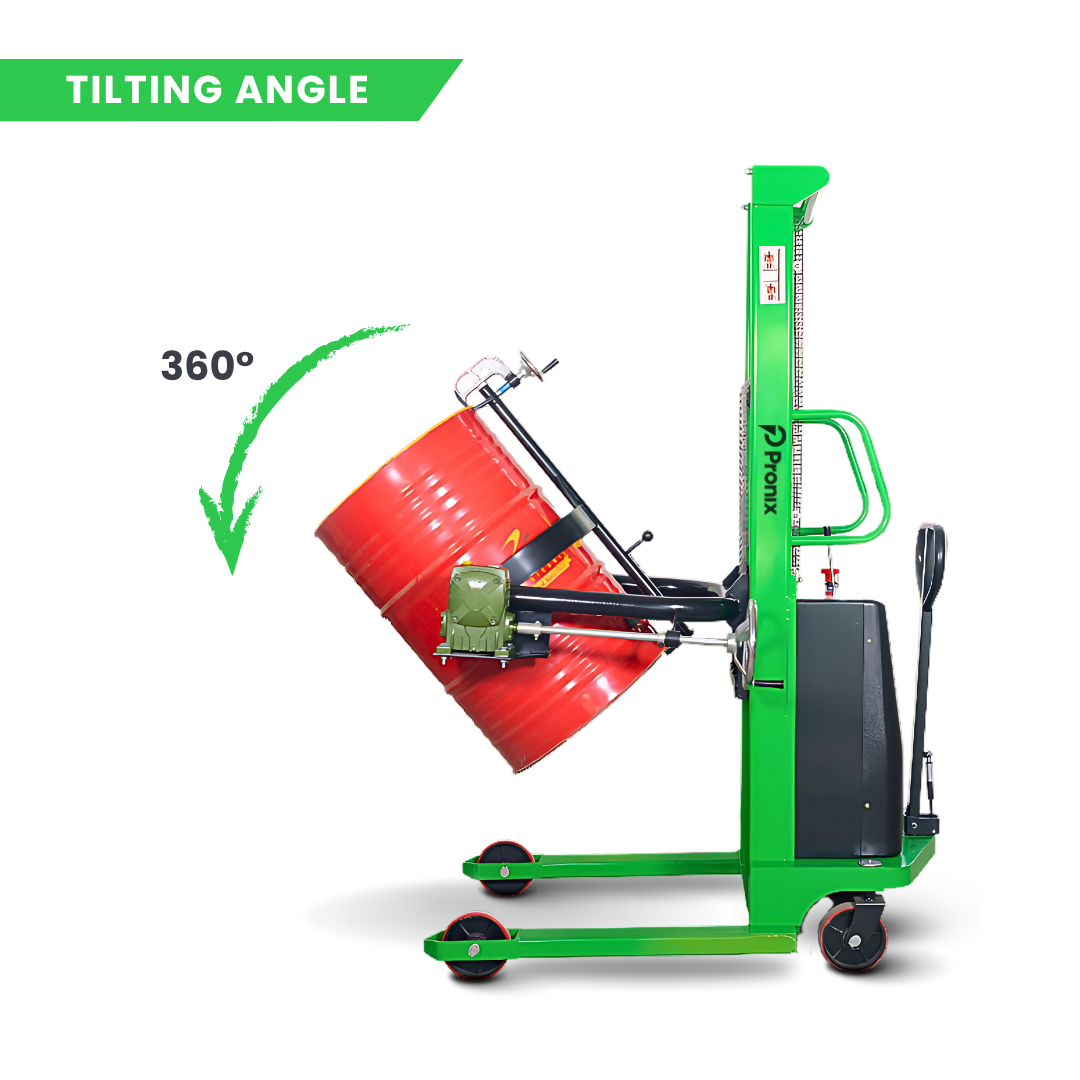

• Brand - Pronix
• Type - Semi-Electric Drum Stacker
• Model No. - PNXSEDS-35016
• Capacity - 350 Kg
• Lifting Height - 1600 mm
• Tilting Angle - 360°
• Turning Radius - 1650 mm
• Overall Height - 2120 mm
• Drive Wheel Size - 180 x 50 mm
• Dimensions - 1190 x 890 x 2000 mm
• Lifting Mechanism - Battery Operated
• Battery Features - Battery Level Indication Display
• Safety Feature - Emergency Stop Button
• Drum Grabber - Equipped
• Wheels - PU Wheels
• Steering Wheel - Swivel Steering Wheel with Brake
• Weight - 320 Kg

• Brand - Pronix
• Type - Semi-Electric Stacker
• Model No. - PNXSES-1035
• Capacity - 1000 Kg
• Max. Lifting Height - 3500 mm
• Load Center - 500 mm
• Min. Height - 85 mm
• Length of the Fork - 1150 mm
• Width of the Fork - 680 mm
• Ground Clearance - 25 mm
• Max. Lift Speed - 90±10% mm
• Max. Lifting Speed - 60 mm
• Max. Lowering Speed -≤280
• Min. Turning Radius - 1500 mm
• Overall Length - 1700 mm
• Overall Width - 800 mm
• Overall Height - 2350 mm
• Rollers - Tandem, PU
• Roller Size - 80 x 70 mm
• Front Wheel Size - 180 x 50 mm
• Battery Capacity - 12v~120 Ah
• Charger - AC 220 DV/50Hz
• Self Weight of Battery - 35 Kg
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating

• Brand - Pronix
• Type - Fully Electric Self-Loading Stacker
• Model - PNXFESLS-1016
• Capacity - 1000 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74 mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1600mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Fully Electric Self-Loading Stacker
• Model - PNXFESLS-1013
• Capacity - 1000 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74 mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1300mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Fully Electric Self-Loading Stacker
• Model - PNXFESLS-0516
• Capacity - 500 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74 mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1600mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Fully Electric Self-Loading Stacker
• Model - PNXFESLS-0513
• Capacity - 500 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74 mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1300mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Semi-Electric Self-Loading Stacker
• Model - PNXSESLS-1016
• Capacity - 1000 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1600mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Semi-Electric Self-Loading Stacker
• Model - PNXSESLS-1013
• Capacity - 1000 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74mm
• Load Wheel Size - Ø 80 x 60 mm
• Fork Lift Height - 1300mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Semi-Electric Self-Loading Stacker
• Model - PNXSESLS-0516
• Capacity - 500 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1600mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Semi-Electric Self-Loading Stacker
• Model - PNXSESLS-0513
• Capacity - 500 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Drive Wheel Size - Ø 250 x 74mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1300mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

*Color may vary.

• Brand - Pronix
• Type - Semi-Electric Stacker
• Model No. - PNXSES-2016
• Capacity - 2000 Kg
• Max. Lifting Height - 1600 mm
• Load Center - 500 mm
• Min. Height - 85 mm
• Length of the Fork - 1000 mm
• Width of the Fork - 680 mm
• Ground Clearance - 25 mm
• Max. Lift Speed - 90±10% mm
• Max. Lifting Speed - 60 mm
• Max. Lowering Speed - ≤280
• Min. Turning Radius - 1500 mm
• Overall Length - 1700 mm
• Overall Width - 800 mm
• Overall Height - 2080 mm
• Rollers - Tandem, PU
• Roller Size - 80 x 70 mm
• Front Wheel Size - 180 x 50 mm
• Battery Capacity - 12v~120 Ah
• Charger - AC 220 DV/50Hz
• Self Weight of Battery - 35 Kg
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating

*Color may vary.
