% Rs. 0.00
- Brand - Pronix

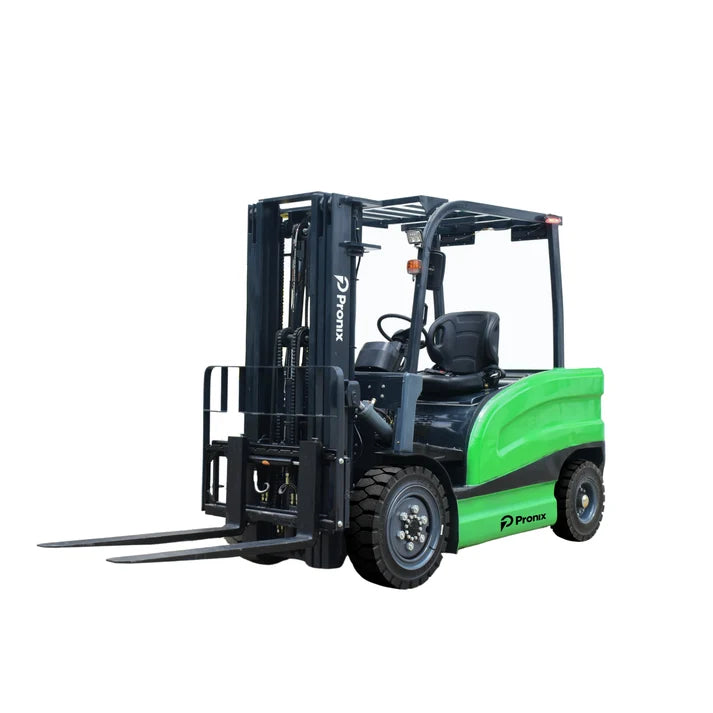

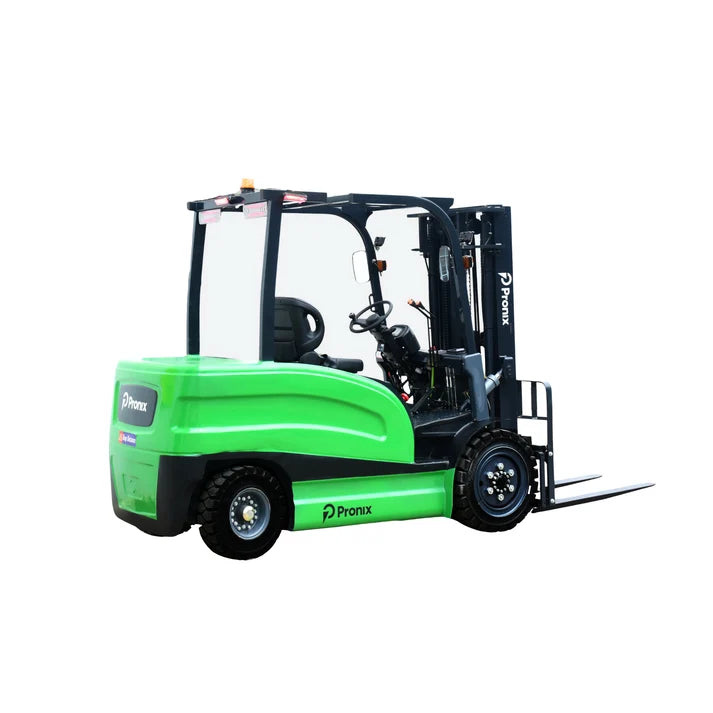

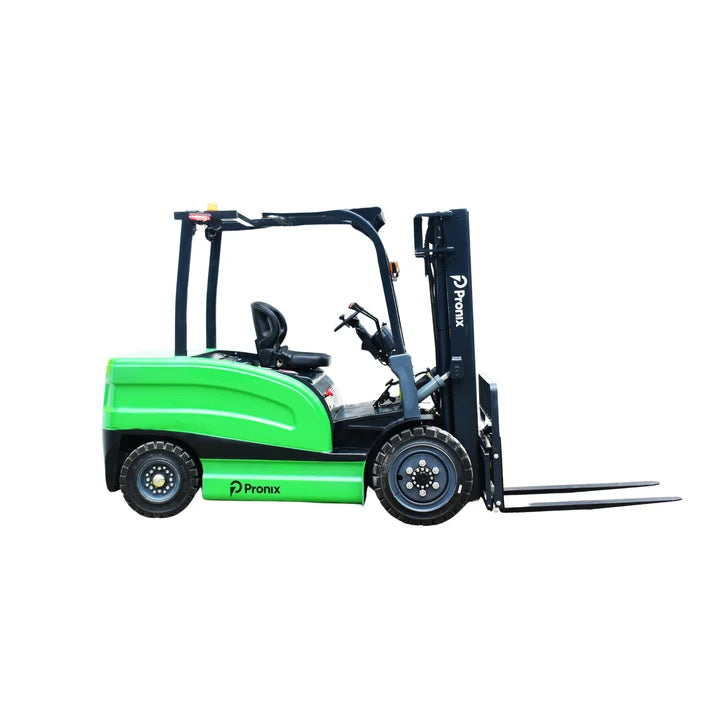

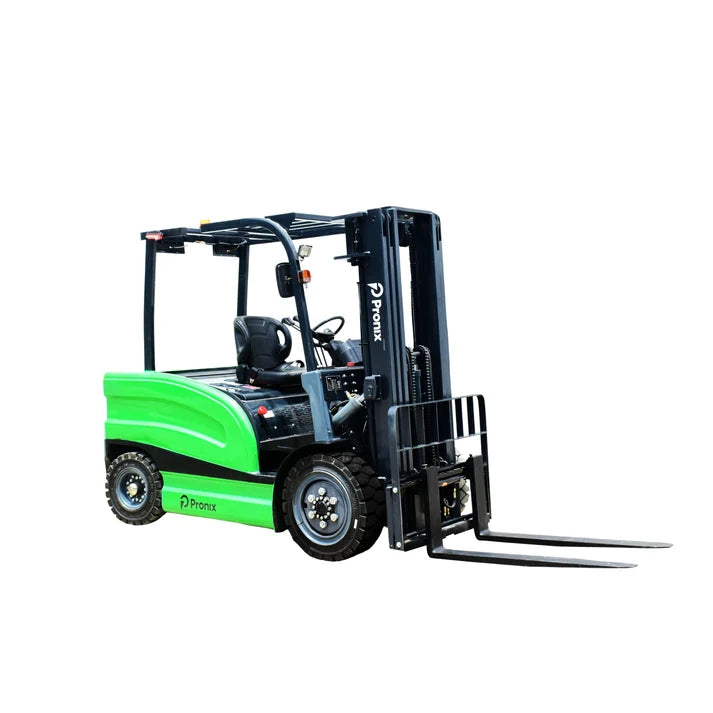

- Type - Electric Forklift
- Model No. - PNXEFL-3030LA
- Load Capacity - 3000 Kg
- Fork Length - 1220 mm
- Overall Length - 3980 mm
- Wheel Width - 1200 mm
- Frame Width - 1300 mm
- Lifting Height - 3000 mm
- Mast - Double Mast
- Height of Protective Frame - 2150 mm
- Maximum Height During Work - 4105 mm
- Wheelbase - 1510 mm
- Front Suspension Distance - 480 mm
- Front Wheelbase - 960 mm
- Rear Wheelbase - 960 mm
- Minimum Distance Lower End of Gantry - 80 mm
- Minimum Distance Mid Frame (Empty/Full) - 130 mm
- Maximum Lifting Speed (Without Load) - 280 mm/s
- Maximum Lifting Speed (Full Load) - 180 mm/s
- Minimum Turning Radius - 2300 mm
- Maximum Operating Speed (Without Load) - 10.5 Km/h
- Maximum Operating Speed (Full Load) - 10 Km/h
- Maximum Climbing Gradient Under Full Load - 15%
- Load Center - 500 mm
- Front Tyre - 28 x 9 - 15
- Rear Tyre - 650 - 10
- Lifting Motor Power - 11.5 kW
- Drive Motor Power - 11.5 kW
- Turn to Row Style - Hydraulic Power Assist
- Input Voltage of Charger - 72V / 50 Ah
- Charging Time - 8 - 10 h
- Battery - Lead Acid Battery
- Battery Capacity - 325 Ah
- Rated Voltage - 72 V
- Self Weight - 3700 Kg (Without Battery)
