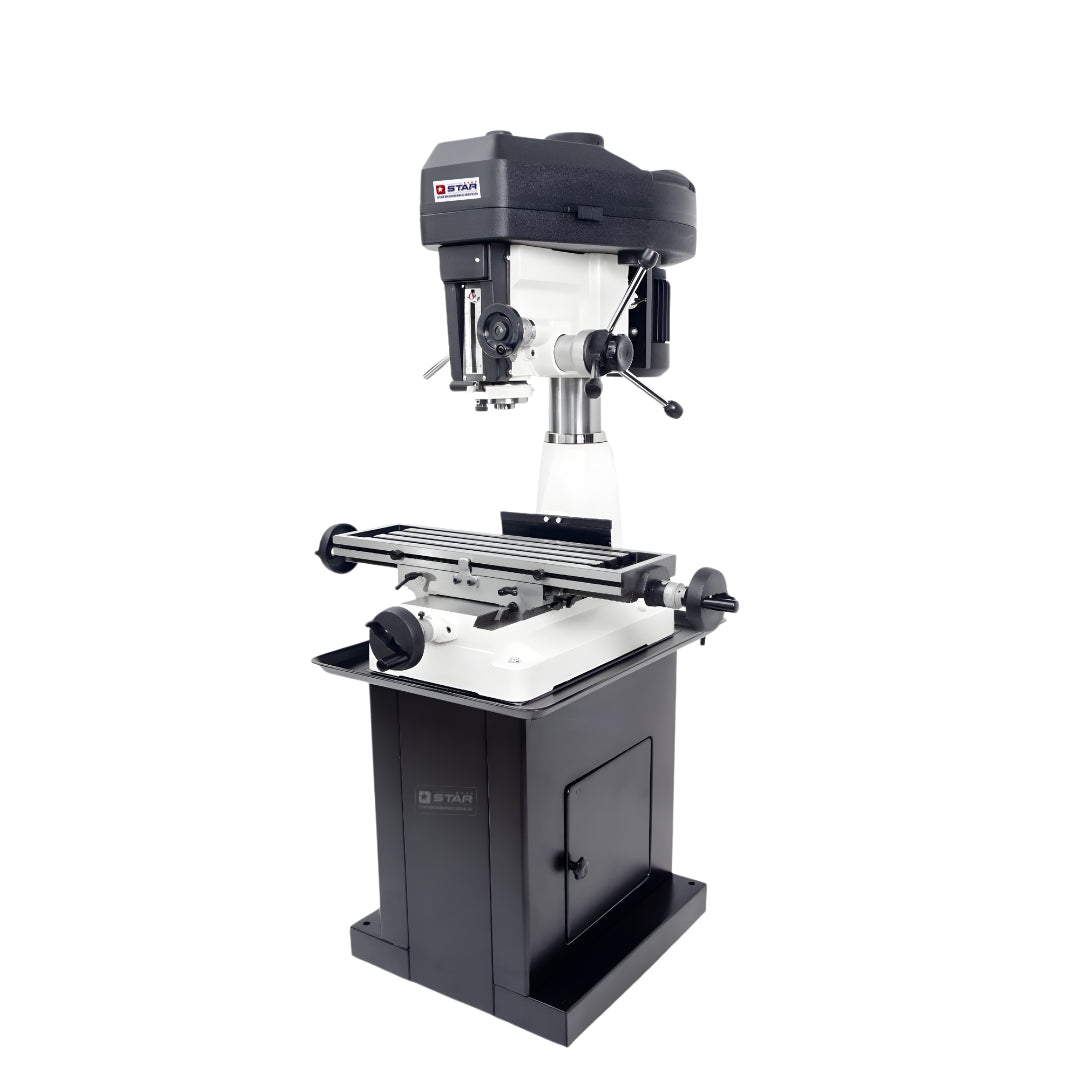

Versatile Mini Milling and Drilling Machine SRMB-30

Name: Versatile Mini Milling and Drilling Machine SRMB-30
Brand: Technocart
SKU: 1000017669
Availability: InStock
Rating: 5.0 (10 reviews)

SKU : 1000017669

Specifications :

Type - Versatile Mini Milling and Drilling Machine
Model No. – SRMB-30
Operations: Milling | Drilling | Tapping | Boring | Reaming
Max. Drilling Capacity – 31.5 mm
Max. Face Mill Capacity – 80 mm
Diameter of Vertical Milling – 22 mm
Spindle Travel – 130 mm
Distance Spindle Axis to Column Generating Line – 202 mm
Max. Distance Spindle Nose to Table – 460 mm
Spindle Taper – MT3 / R8
Spindle Speed Range – 100-2150 r/Min
Spindle Speed Series – 12
Dimension of Work Table Surface – 730 x 210 mm
Table Travel – 450 x 170 mm
Overall Height – 1100 mm
Main Motor – 1100 – 1500 W
Weight – 250 Kg

Dispatched by |

Available:

In Stock

Out of Stock

Back in stock

Rs. 0.00

Wishlist

Description
Reviews

SRMB-30 is a compact yet powerful milling and drilling machine designed for precision work in small workshops and educational settings.
This versatile unit handles milling, drilling, tapping, boring and reaming operations with ease.
Key specifications include a maximum drilling capacity of 31.5 mm, face mill capacity up to 80 mm and a spindle speed range of 100-2150 RPM across 12 speed settings.
MT3/R8 spindle taper ensures compatibility with standard tooling.
With a work table measuring 730 x 210 mm and 450 x 170 mm travel, it accommodates various workpiece sizes while maintaining precision.
The machine features 130 mm spindle travel and a maximum distance of 460 mm from spindle nose to table, providing adequate clearance for complex operations.
Powered by a 1100-1500 W motor and weighing 250 kg, it delivers reliable performance for prototype development, tool making, and small-scale production work.
Overall height of 1100 mm makes it suitable for standard workbenches.
