- Brand - Star
- Type - Measuring Instrument

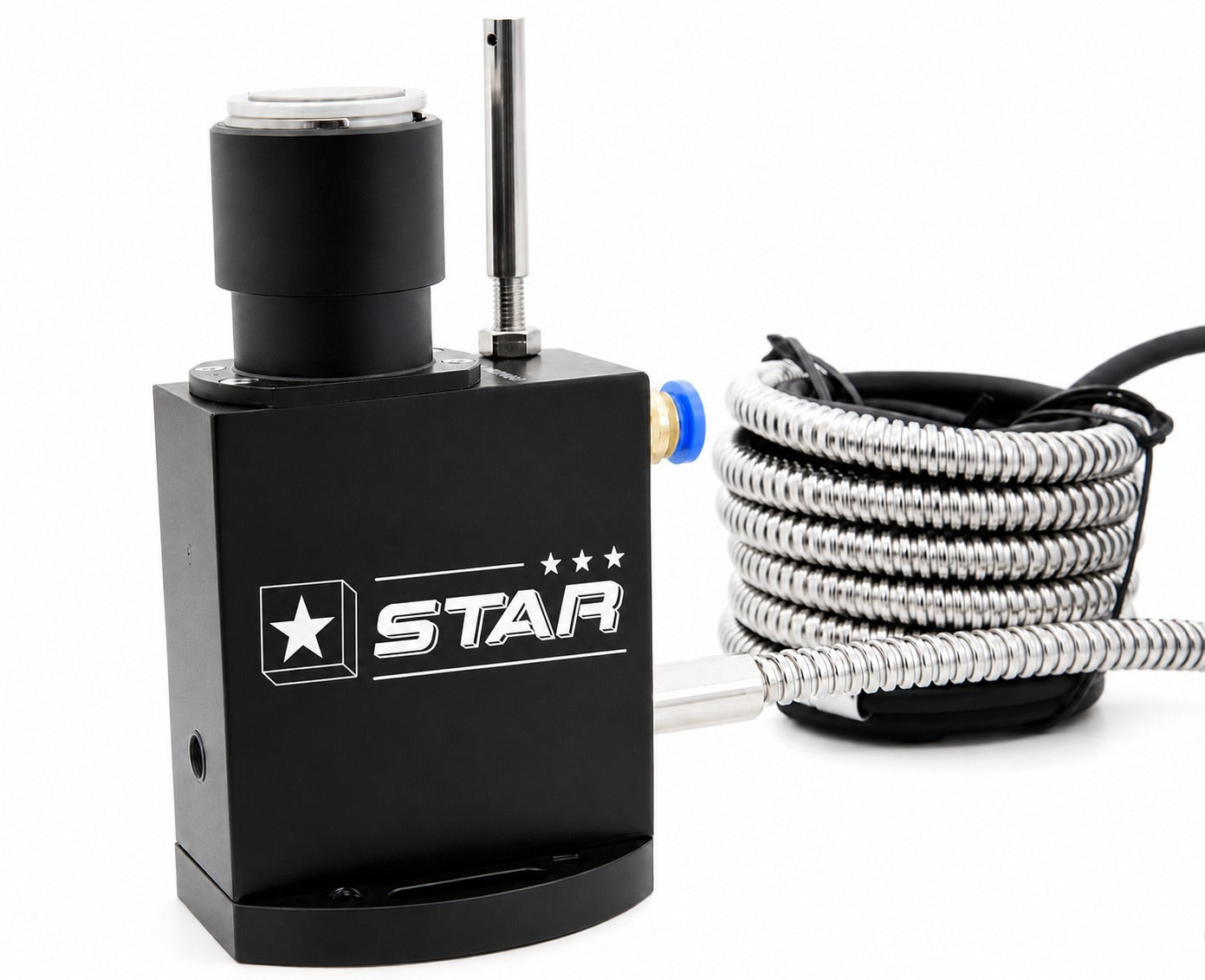

- Model - STPETS-200
- Sensor Type - Photoelectric
- Trigger Direction - +Z Only
- Touch Pad Diameter - Ø 20 mm
- Repeatability (2Σ) - < 0.5 µm
- Pre-Stroke - 0.5 mm
- Output Type - NO (Normally Open)
- Stroke Length - 11 mm
- Trigger Protection Dist. - 5.5 mm
- Trigger Life - > 10 Million
- Protection Level - IP 68
- Trigger Force - 1.5 N
- Touch Pad Material - Tungsten Carbide
- Contact Nominal Value - DC 24V · Max 50mA
- Dimensions (mm) - 60 × 27 × 105
