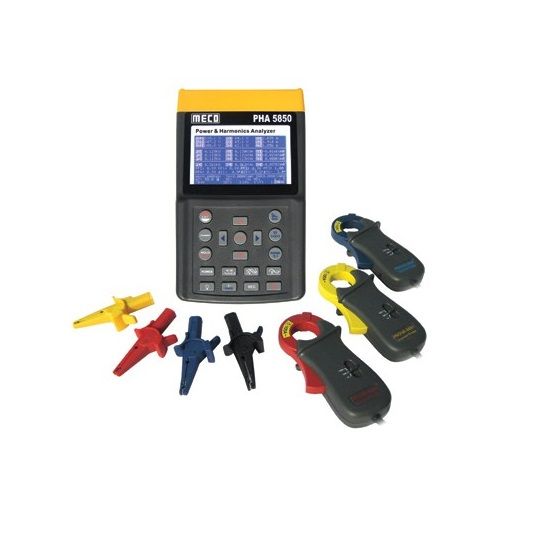

Meco Power And Harmonics Analyser PHA 5850C

Name: Meco Power And Harmonics Analyser PHA 5850C
Brand: Meco
SKU: 1000007205
Price: 273275.0 INR
Availability: OutOfStock
Rating: 5.0 (10 reviews)

SKU : 1000007205

Brand-Meco
Range-300 / 3000A AC
Display-35 Parameters

Dispatched by | Sunday, 2 November

Order today until 18:00

Available:

In Stock

Out of Stock

Back in stock

Rs. 273,275.00

~~Rs. 352,525.00~~

Description
Reviews

This is a powerful piece of equipment for engineers and technicians.
The scope of the Power and Harmonics Analyzer is to measure the power and harmonics of a voltage or current.
It can be used for various applications such as testing circuits and power systems.
The device is designed to be compact and lightweight.
Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems.
Display of 35 Parameters in one screen (3P4W).
Programmable CT (1 to 600) and PT (1 to 3000) Ratios.
RMS, PEAK Value & Crest Factor.
True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR).
Power Factor, Phase Angle ( ÃÂ¤ ) & Energy (WH, KWH, KVARH, PFH).
Average / Maximum Demand (KW, MW, KVA, MVA) with Progrmmable Period.
Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample / Period).
Analysis of total Harmonics Destortion (THD-F).
Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE).
Built in timer & Calender for Data Logging.
512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems).
Optical Isolated RS-232C ~ USB Interface.
Calculated Unbalanced Current through Neutral line.
